P1FSA-XXXXXXXXXXAMA1

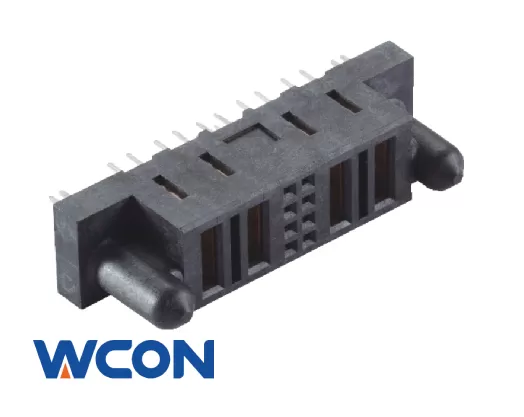

PSP Connector,Female,Power+Signal+Power,Vertical,Through Hole,Spacing A,Gold or Tin over nickel,Black
Inquiry Now Register
/assets/upload/2023-12-22/P1FSA-XXXXXXXXXXAMA1.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage Power：600V Signal：50 V/AC Operation Temperature -20°C - +105°C
Rated Current Power：30A Signal：2.5 AMP Contact Material Copper Alloy
Contact Resistance Power：0.7mΩ Max Signal：20 mΩ Max Insulator Material PA9T
Insulation Resistance Power：10000MΩ Max Signal：500 MΩ Min Contact Plating Au&Sn
Withstand Voltage Power：2500V/AC Signal：1000 V/AC Packaging Tray

RoHS

Compliant

REACH

Compliant

  • Description
    Part Number
  • PSP Connector,Male,Power+Signal+Power,Vertical,Through Hole,Spacing A,Gold or Tin over nickel,Black
    P1MSA-XXXXXXXXXXAMA1
  • PSP Connector,Male,Power+Signal+Power,Horizontal,Through Hole,Spacing A,Gold or Tin over nickel,Black
    P1MRA-XXXXXXXXXXAMA1
