3131-XXMXXBK00X3

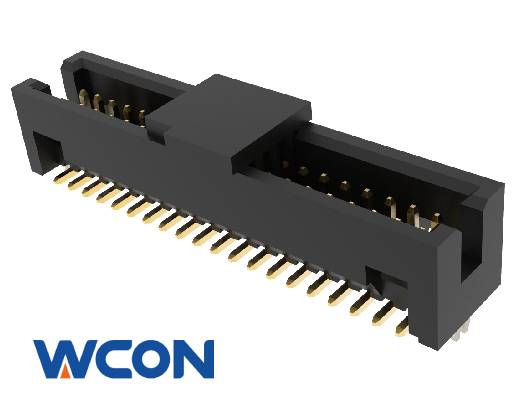

1.27mm Pitch Box Header Connector,Male,5.70mm Height,Vertical,Surface Mount,With Fork,Gold or Tin over Ni
Inquiry Now Register
/assets/upload/2024-01-18/3131-XXMXXBK00X3.jpg
2D Drawing(PDF)
3D Model
Packaging Specification
Rated Voltage 100 V/AC Operation Temperature -40°C - +105°C
Rated Current 1 AMP Contact Material Brass
Contact Resistance 20 mΩ Max Insulator Material PA9T
Insulation Resistance 1000 MΩ Min Contact Plating Au&Sn
Withstand Voltage 500 V/AC Packaging Tube,Reel

ROHS

Compliant

REACH

Compliant
