Why Choose the 3651 Series Board-to-Board Connector?

.

      As the development of intelligent manufacturing continues to deepen, the demand for interconnection between equipment, machines, and systems is increasing. This trend is resulted in heightened led to higher requirements for the performance, reliability, and integration of industrial connectors. The 3651 series printed board connectors from WCON Electronics meet the high demands of industrial and medical equipment for miniaturization, integration, and high-speed performance, while also adapting to compact design spaces.

.

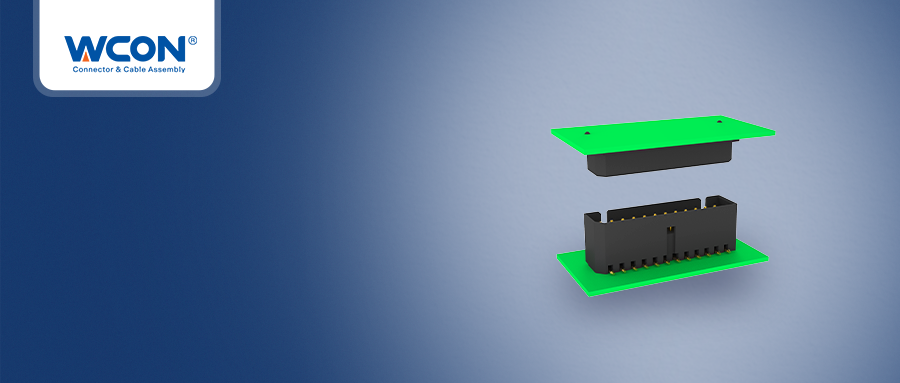

       The 3651 series is a 1.25mm pitch, small-sized, high-performance board-to-board connector that provides stable signal transmission for equipment. The product features positioning pins for precise installation onto circuit boards. It comes in various configurations, including male headers with 180° SMT, DIP; female headers with 90° SMT, DIP; and offers 36 different models to choose from.

.

.

Product Features

1. Compact Size, High-Density Integration

   • 1.25mm pitch design: Adapts to compact device layouts, saving PCB space.

   • Diverse product forms to meet customer needs.

2. Anti-Misinsertion and Precise Positioning

   • Anti-misinsertion structure: Unique guiding design to prevent installation errors that could damage equipment.

   • Positioning pin design: Ensures precise alignment of connectors, improving assembly efficiency.

3. Stable Performance in Harsh Environments

   • Wide temperature range: -40°C to +105°C, suitable for extreme working environments in industrial and medical equipment.

   • High insulation withstand voltage: 500V AC for 1 minute, ensuring equipment safety.

.

.

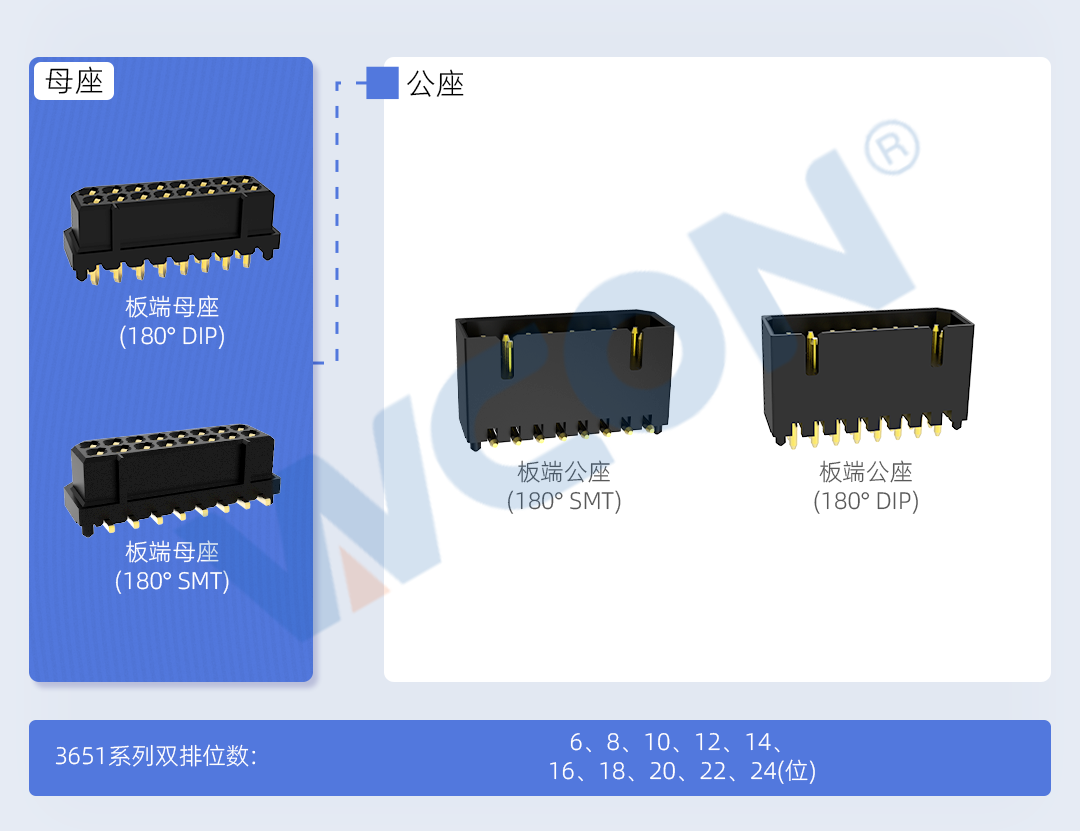

选型一览表

.

Application Fields

• Industrial: Automation equipment, industrial computers.

• Medical: Medical devices.

.

Get Product Information Now

Click to view the detailed specifications and 3D models of the 3651 series board-to-board connectors:

https://www.wcon.cn/search.html?keyword=3651

.

Why Choose Weifeng Electronics?

• Over 20 years of industry experience: Deep expertise in the connector field, offering over 50,000 product specifications and models.

• Standardization: Integrates three major international automotive standards: QC/T1067, USCAR, and LV214.

• Fast delivery: Domestic production, short lead times, and quick logistics.
