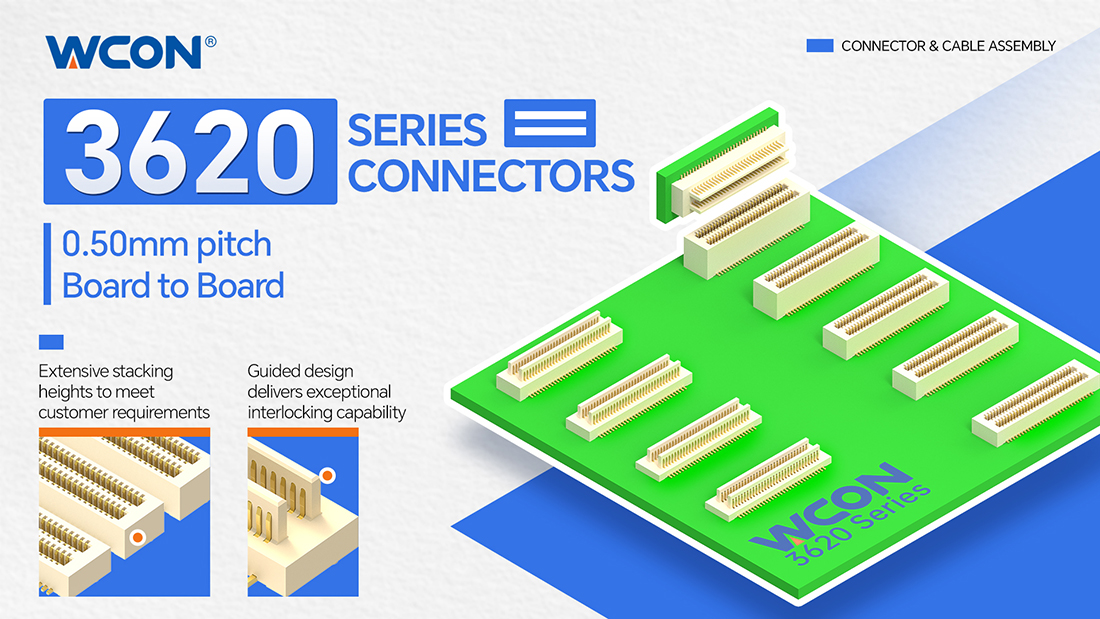

3620 Series Board-to-Board Connector | 0.50mm Pitch High-Density Miniature Interconnect Solution
As industrial equipment continues to evolve toward miniaturization and high integration, demands for space utilization and mating reliability in board-to-board connectors have intensified. WCON's 3620 Series is an ultra-compact board-to-board connector featuring a 0.50mm pitch. Its dual-slot design accommodates various circuit sizes and stacking heights, offering flexible adaptation to compact design requirements.
This product achieves superior mating performance through its guide structure, while its unique terminal contact design further optimizes electrical contact performance to meet the demands of high-density, stable signal transmission. The 3620 series is suitable for industrial applications such as automation equipment, PLCs, control panels, and drones, providing reliable interconnect solutions for miniaturized devices.
| Product Highlights | Performance Specifications |
| - Guided design for easy assembly; | - Rated Current: 0.5A |
| - Optional positioning pins for stable connection; | - Rated Voltage: 50V AC |

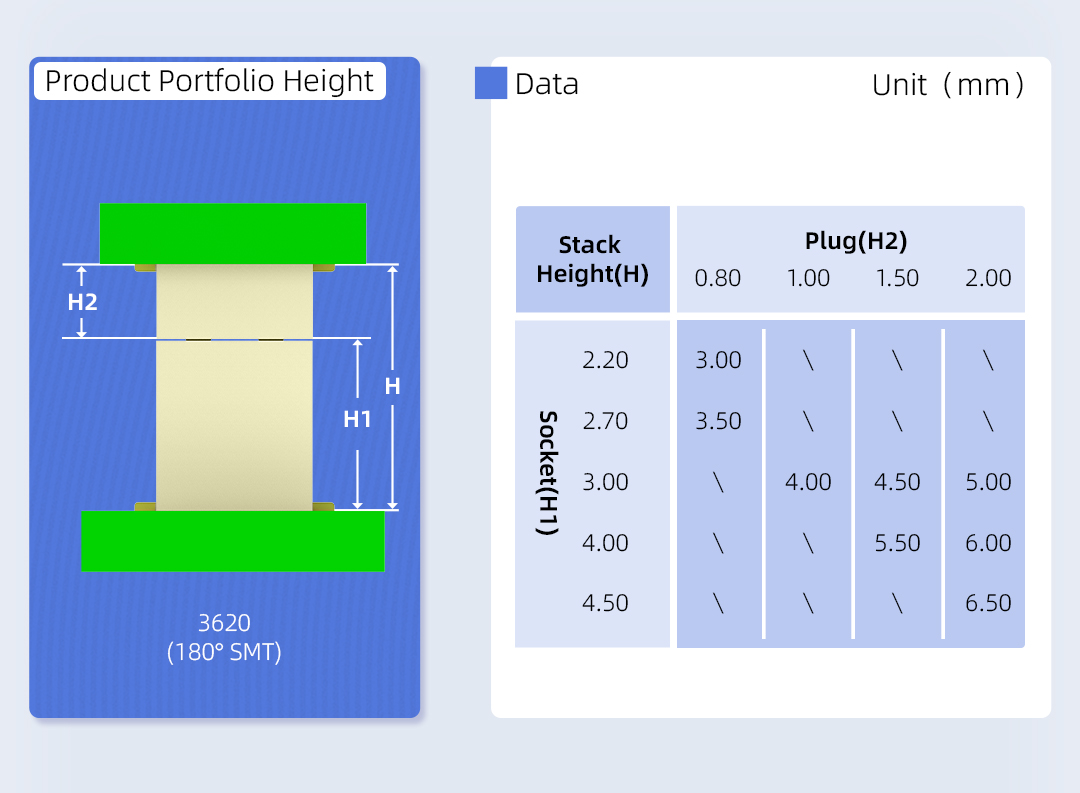

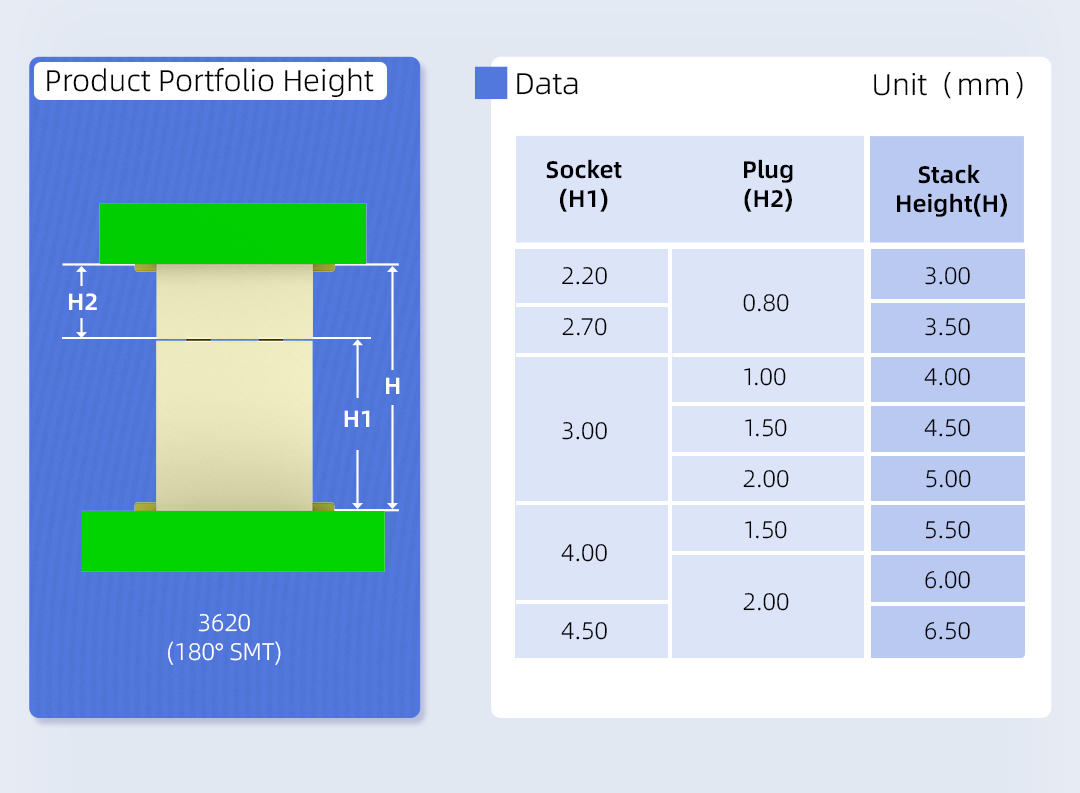

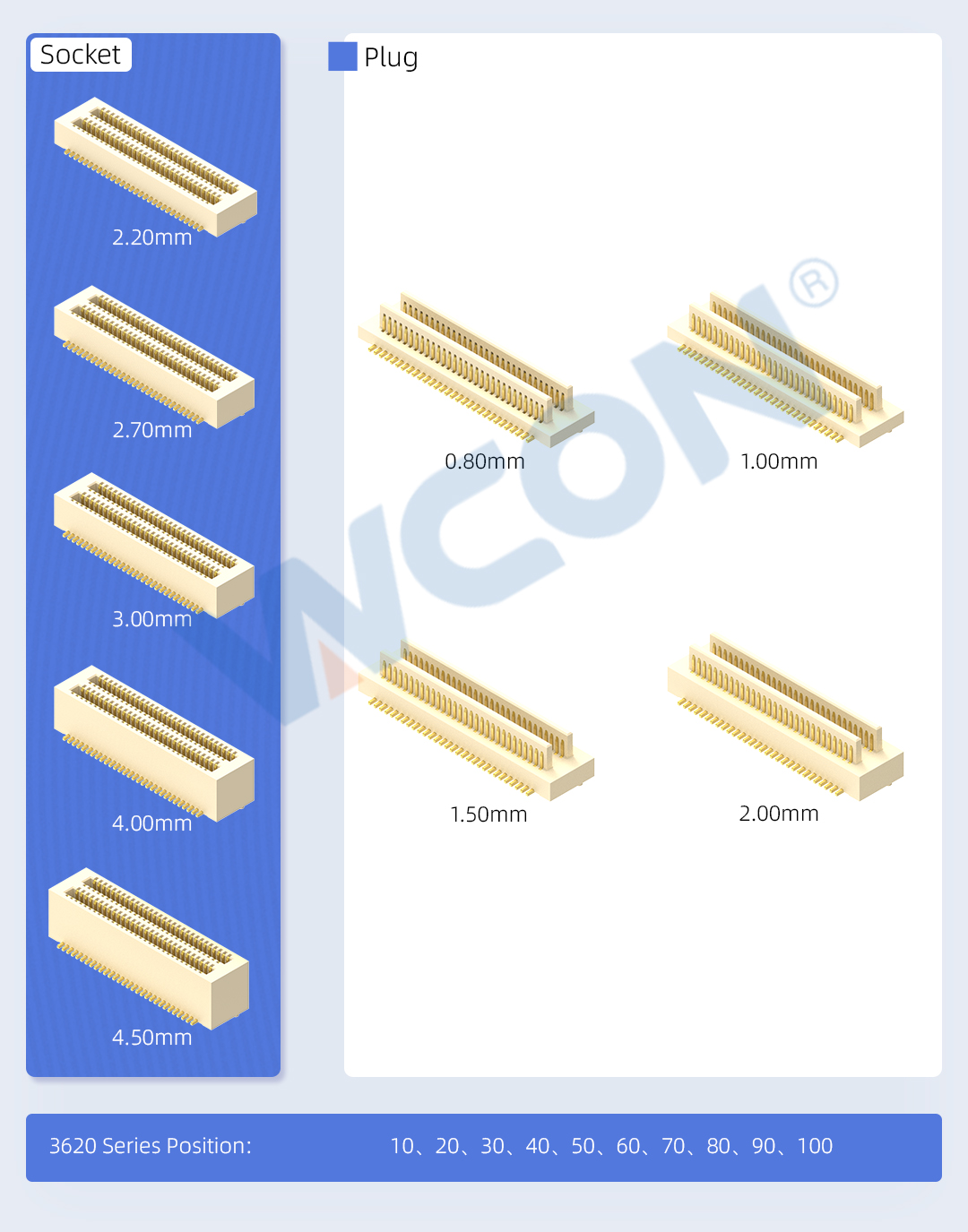

| - Stack height: 3.00–6.50 mm options available. | - Insulation Resistance: 100MΩ Min |
| - Withstand Voltage: 50V AC/Min | |
| - Operating Temperature: -40°C to +105°C |
| Standards | Application Areas |
| - EIA 364 | - Industrial Control and Automation |
| - IEC 60512 | - Consumer Electronics |
