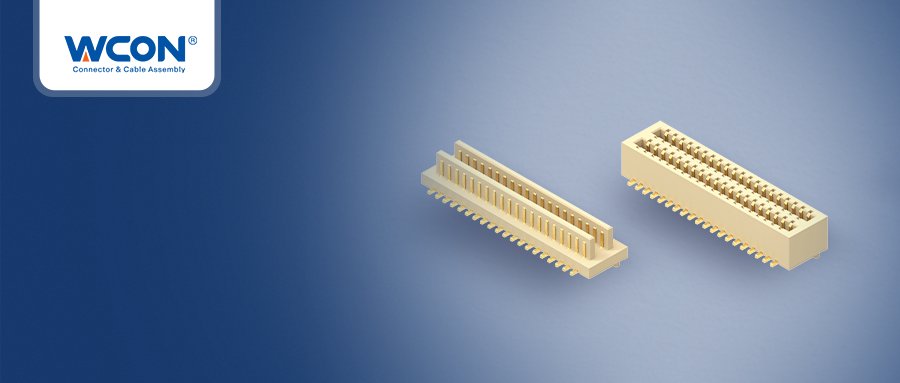

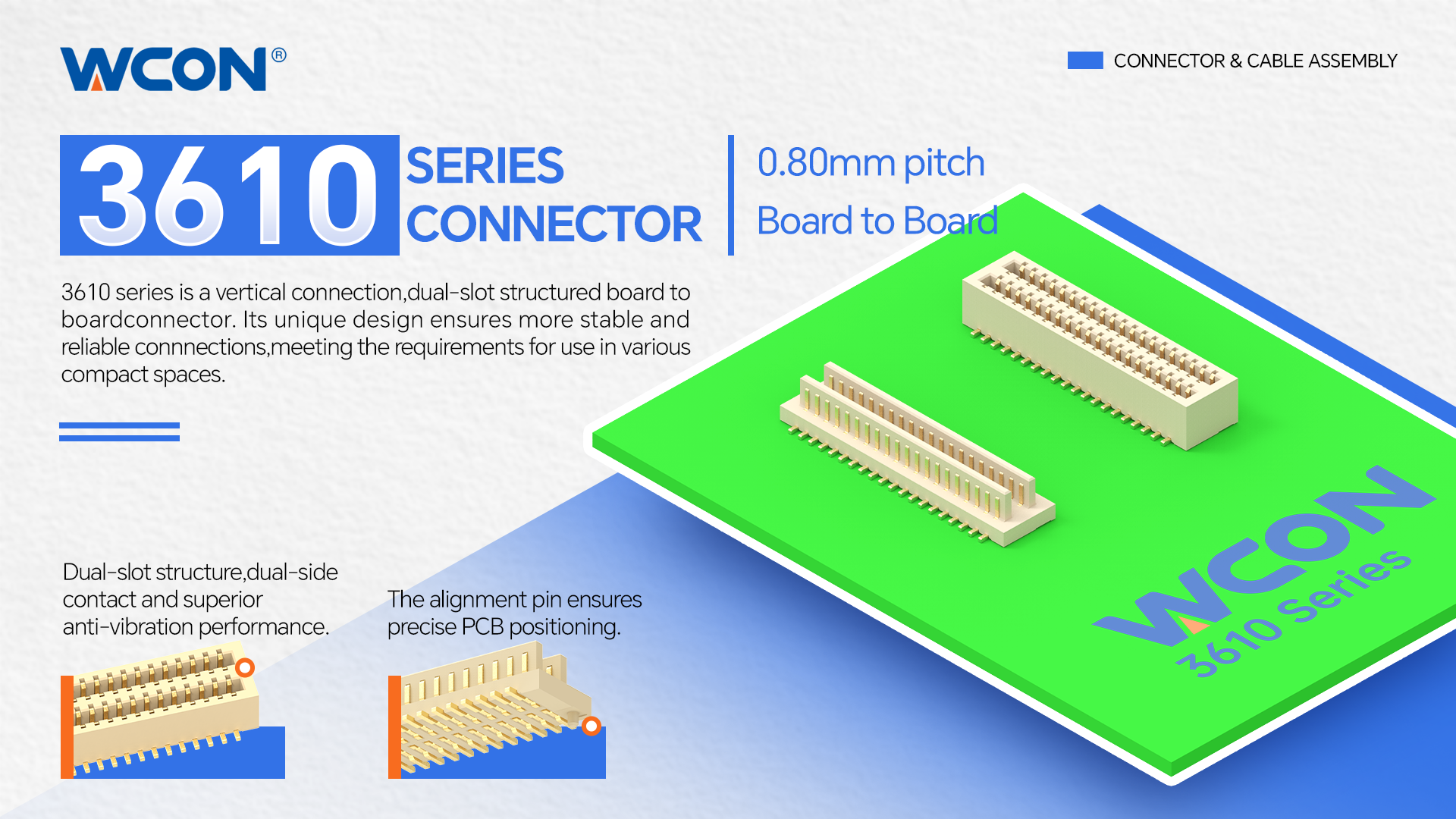

As industrial equipment continues to evolve toward higher density and modularization, greater demands are placed on the spatial adaptability and signal stability of board-to-board connectors. Wcon electronics' 3610 series is a vertical board-to-board connector with a 0.80mm pitch. Its dual-groove design enhances connection stability and reliability, making it ideal for a wide range of compact applications.

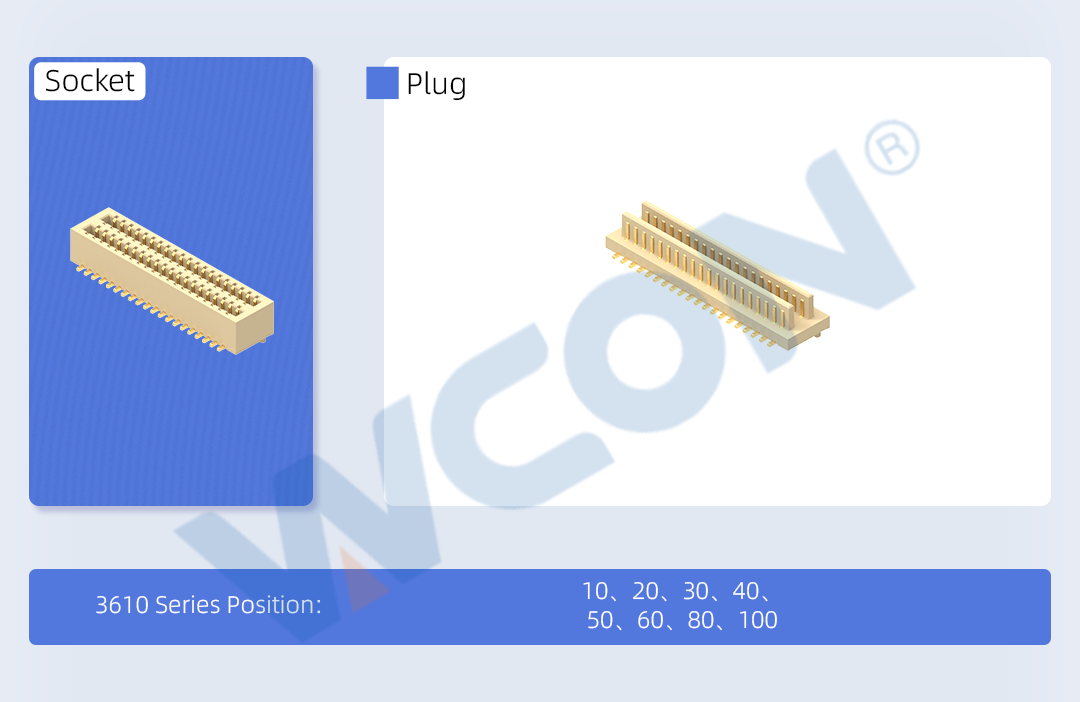

This product offers flexible pin count options from 10 to 100 positions and features guiding structures for precise alignment and superior engagement. The unique terminal contact design further enhances electrical performance, ensuring stable signal transmission. The 3610 Series is widely applicable in critical fields such as industrial automation equipment, data communication systems, and control cabinets, providing a compact and reliable high-density interconnection solution.

Product Features

High Density in Compact Form Factor

Superior Contact Stability with Unique Terminal Design

Easy Blind Mating in Both Orientations

Secure Connection with Positioning Posts

Design Flexibility with 4.00-8.00mm Stack Heights

Performance Specifications

Rated Current: 0.5A Max.

Contact Resistance: 50 mΩ Max.

Withstanding Voltage: 500V AC (1 minute)

Operating Temperature: -40°C to +105°C

Standard

EIA-364

Data Sheet

Application

Industrial Automation , Data Communication Equipment , Control Cabinets

Get Information

Download the detailed specifications for the 3610 series (PDF) and view the 3D model now.

Contact Us

For more information on application solutions for the 3610 series, please feel free to contact our technical support team.
