To meet the stringent Application of industrial automation and medical equipment for high-density precision interconnects, Wcon Electronics promote

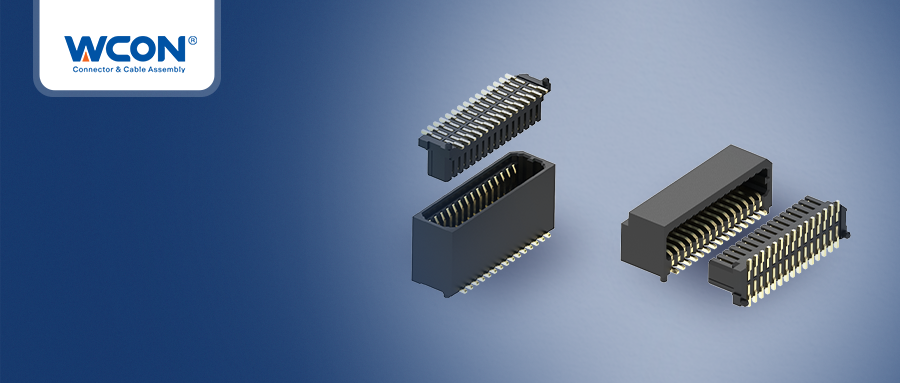

3612 Series— 0.80mm pitch board-to-board connector , with miniaturized design, multiple mating height options and flexible  adaptation .

This product features an Anti-misplug prevention structural design and a positioning post guiding system, ensuring installation accuracy and contact reliability, and supports vertical or horizontal installation. Its high-density layout characteristic has been successfully applied in the fields of industrial automation equipment and medical instruments, providing stable support for the signal integrity of complex systems.

Product Features

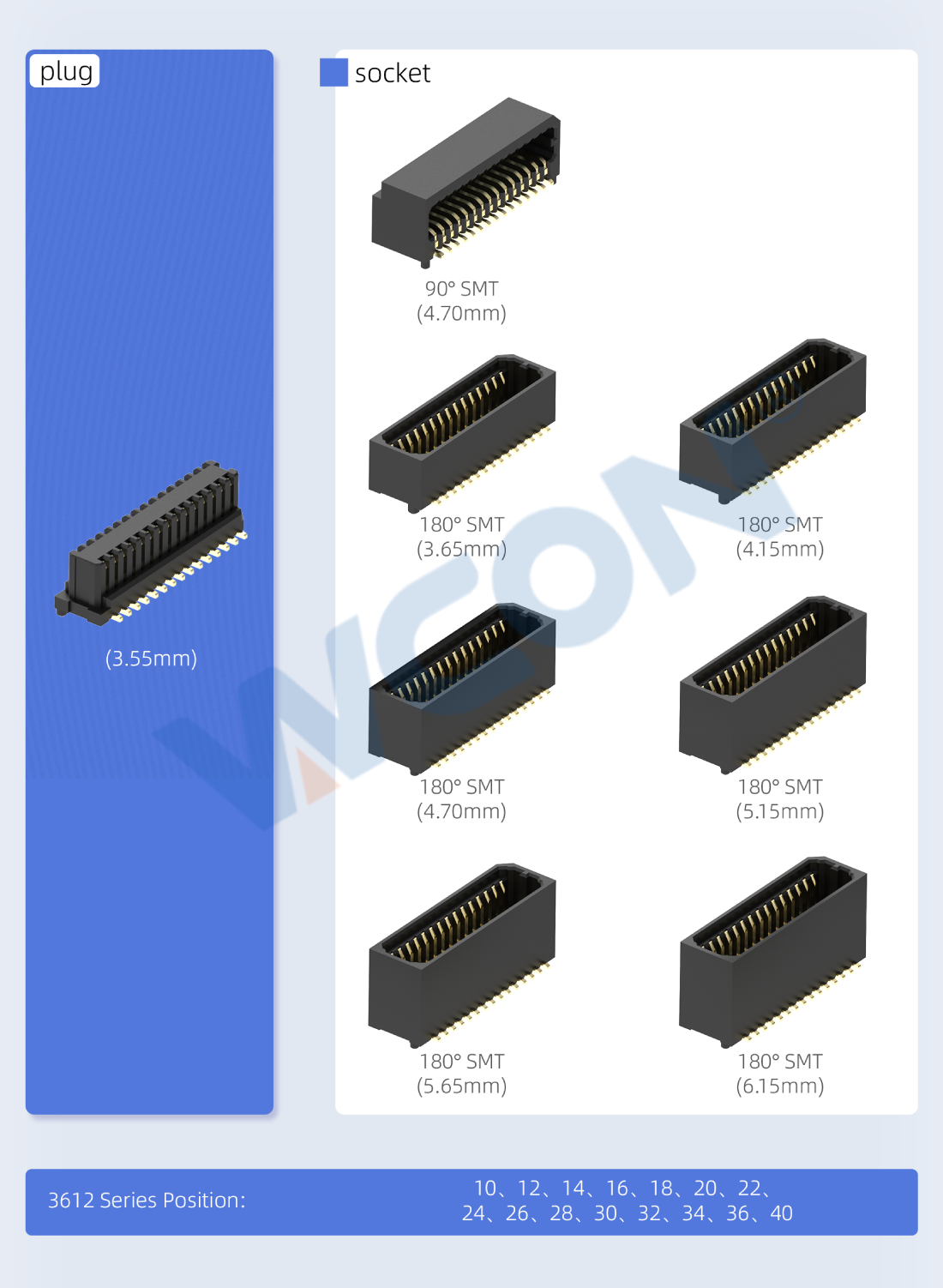

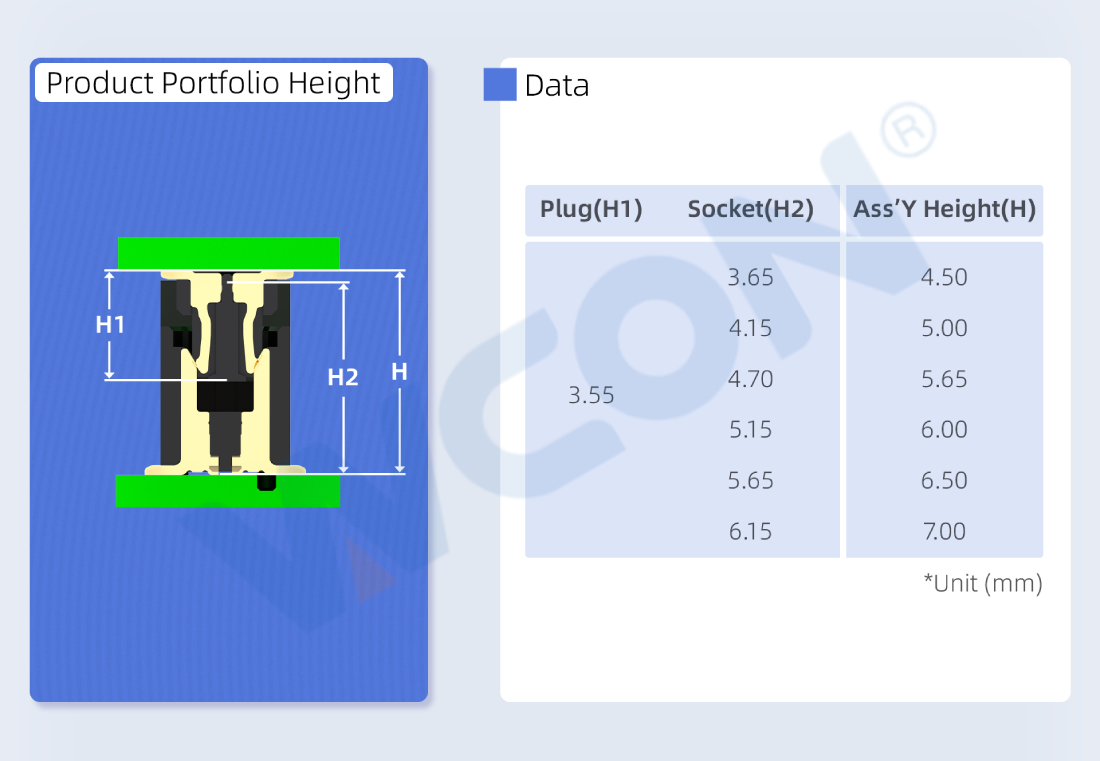

Wide range of mating heights: 4.50–7.00mm

Anti-misplug structure design for correct mating

Supports both vertical and horizontal orientation for flexible configuration

Equipped with guide posts and retention tabs for precise alignment and stable soldering

Performance Specifications

Rated Current: 0.5A

Operating Temperature: -20°C to +105°C

Contact Resistance: 30mΩ Max

Insulation Resistance: 100MΩ Min

Withstand Voltage: AC 500V for 1 minute

Standard

EIA-364

Data Sheet

Applications

Industrial: Automation Equipment

Medical: Medical Devices

Get Information

Download the detailed specifications for the 3612 series (PDF) and view the 3D model now

Contact Us

For more information on application solutions for the 3612 series connectors, please feel free to contact our technical support team.
