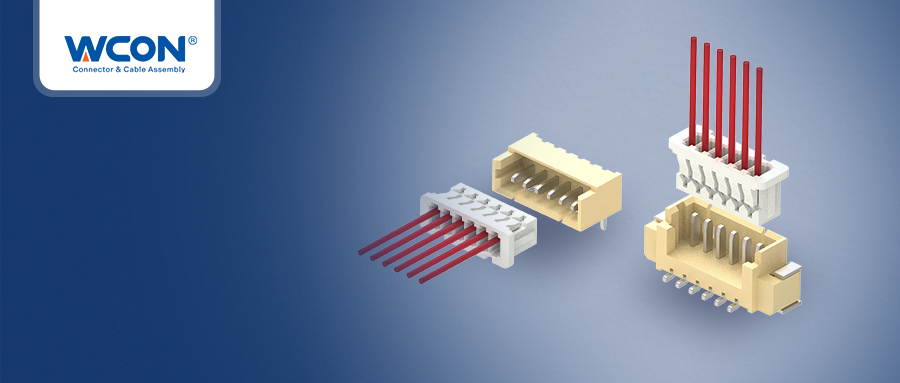

With the ongoing advancement of industrial automation towards higher precision and reliability, there are increasing demands for the anti-vibration and stable transmission performance of core connection components. The WF1251 series, introduced by wcon electronics, is a 1.25mm pitch crimp-type wire-to-board connector. It offers high-density layout and excellent anti-vibration performance. The incorporation of a bump snap-fit mechanism significantly enhances the mating stability between the header and receptacle.

 This product is equipped with a retention plate design, which strengthens the solder retention force on the PCB, ensuring mechanical robustness in harsh environments. The WF1251 series crimp-type wire-to-board connector is widely suitable for critical areas within industrial automation equipment, providing customers with a compact and reliable signal transmission solution.

Features and Benefits

Small size and high integration

Mis-insertion-proof design to avoid mis-insertion effectively

Convex point lock design enhances interoperability stability

board end has various shapes and can meet the plug-in needs of customers in various occasions

Performance Specifications

Rated Current: 1A Max.

Operating Temperature: -40°C ~ +105°C.

Contact Resistance: 20mΩ Max.

Applicable Wire Range: AWG #28 ~ #30.

Withstanding Voltage: AC 500V for one minute.

Standards

EIA-364

IEC 60068

Data Sheet

Product Applications

Industrial control and automation

Equipment monitoring instrument

Get Information

Download the detailed specifications for the WF1251 series (PDF) and view the 3D model now.

Contact Us

For more information on application solutions for the WF1251 series, please feel free to contact our technical support team.
