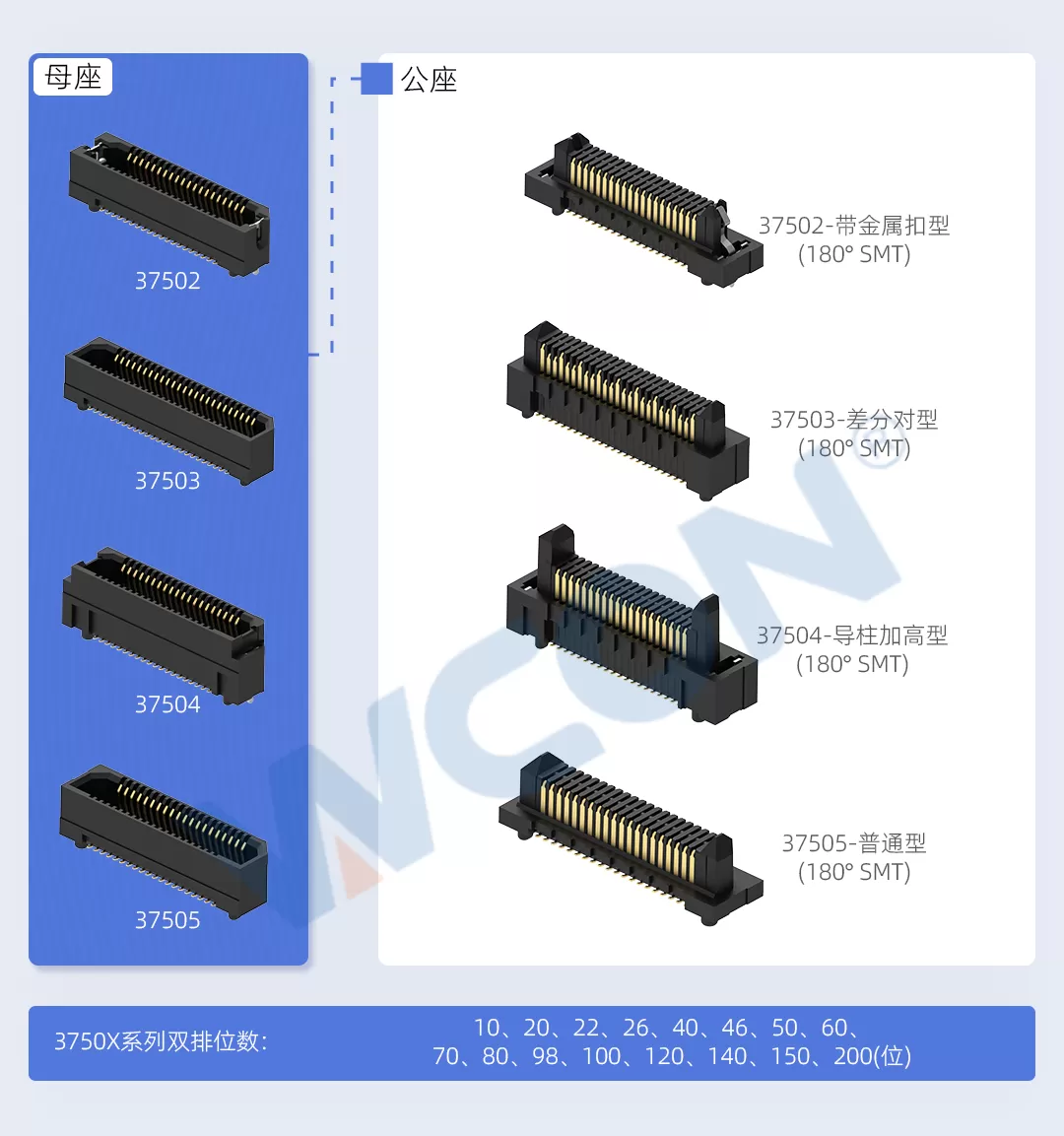

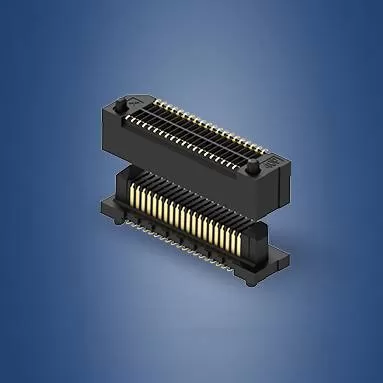

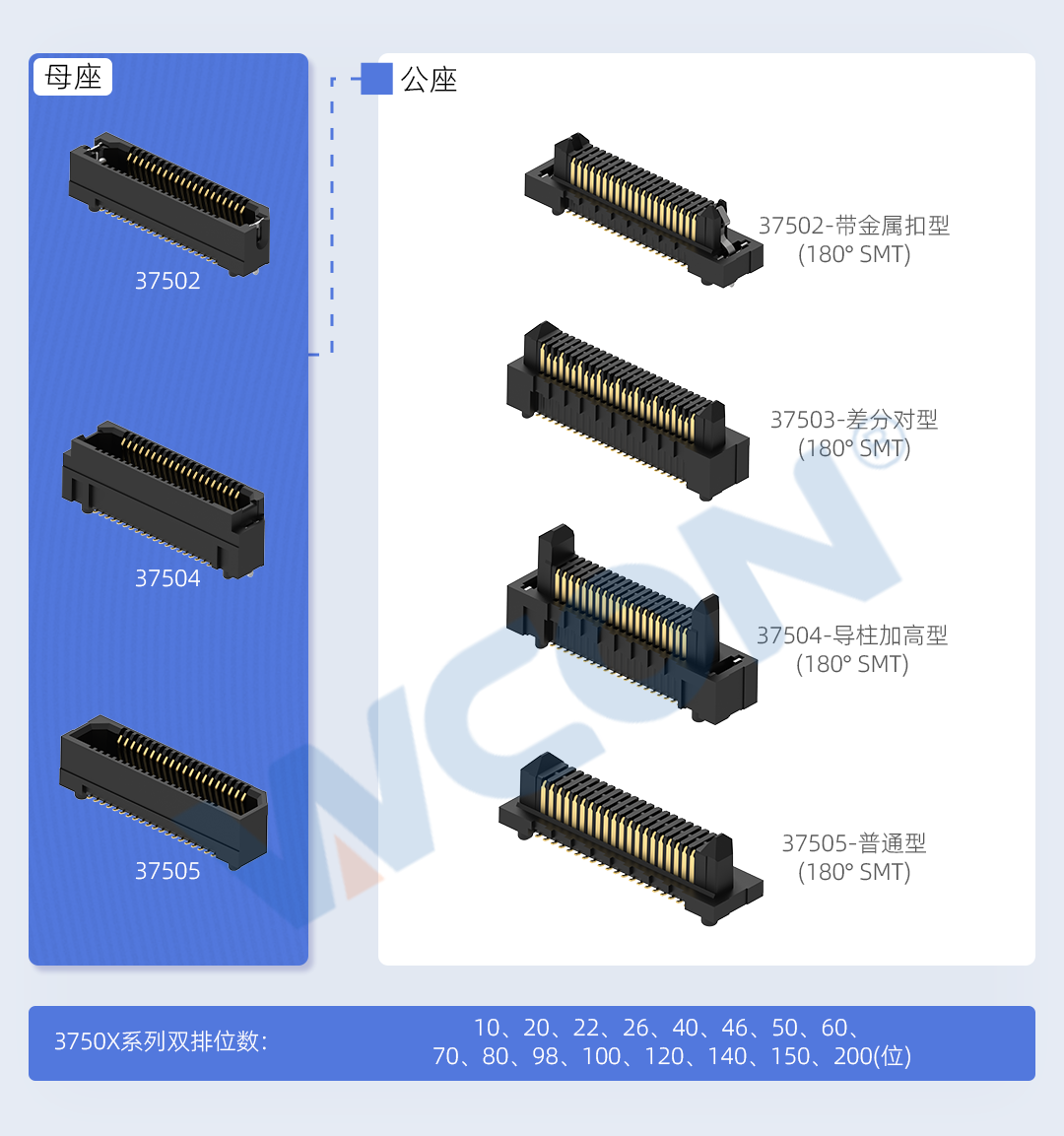

Developed by WCON, the 3750X series is a dual-row, high-speed board-to-board connector with a 0.8mm pitch. It boasts high density, exceptional performance, and robust construction, supporting ultra-fast data transmission rates of up to 56 Gbps. This connector is ideal for applications in robotics, automation equipment, data centers, and similar fields. Multiple models are available to provide flexible and reliable signal solutions.

Product Features

· Multiple stacking heights (up to 200 pins)

· An optional metal latching mechanism is available for enhanced vibration and shock resistance.

· 56 Gbps high-speed data transmission

· Blind-mate capable with guide post design

Materials

· Rated Current：2.1A

· Rated Voltage：100V

· Contact Resistance：30mΩ Max

· Insulation Resistance：20000MΩ / Min

· Withstand Voltage：900V AC 1 / Min

· Operating Temperature：-55°C-+125°C

Standards

· IEC 60512

Data Sheet

Get Product  Information

Click to view detailed specifications and 3D models of the 3750X series board-to-board connectors:

https://www.wcon.com/search.html?keyword=3750X

Applications

•  Industrial automation controls and robotics

•  Data centers and storage equipment
